THIS 6 MINUTE VIDEO PRESENTATION OUTLINES THE INTENDED AND UNINTENDED BENEFITS OF CLEANING

The use of chemical additives is required when removing rosin and no-clean fluxes. How about water soluble flux removal applications? This presentation outlines the benefits of using a chemical additive even when it's not specifically required to remove the flux.

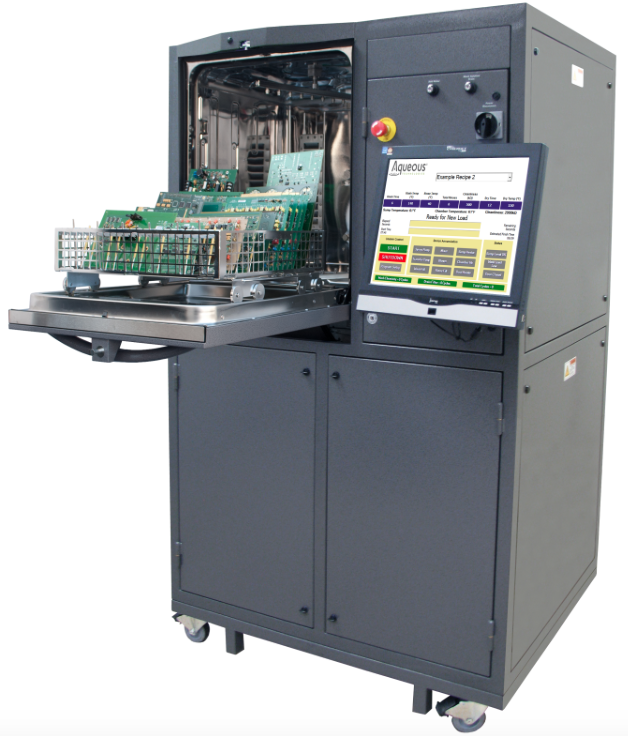

Trident ECO
Economical (Entry Level) Cleaning System for Low-Medium Production

  • Removes Any Flux From Any Alloy
  • Closed-Loop (Zero Discharge) Wash Cycle
  • Low Discharge Rinse Cycle
  • Automatic Wash, Rinse, and Dry Cycles
  • Unlimited Program Recipes
  • Graphic User Touchscreen Interface
  • Entry-Level Pricing

Trident ECO offers the cleaning power of Trident in a lower cost, longer cycle time configuration. Equipped with an asymmetrical fan-jet spray system, Trident ECO's twin stainless steel counter rotating spray bars feature twenty stainless steel fan-jet nozzles project precision-diffused wash solution and rinse water onto a shadow-mitigating oscillating board rack. This spray system was implemented to deliver controlled fluid energy underneath fine-pitch components. Trident ECO includes a closed loop (zero discharge) wash solution section and an low-discharge rinse section.

Features:
Dimensions: 42 1/4"D x 47 3/4"W x 70"H
Electrical Requirements: 208-240 3Ø 40 amps
Chemical Dosing and Mixing: Manual
Control System: Windows 7 PC User Interface Touchscreen
Advanced SPC Data Collection
Assembly Barcode Scanning Capability
Built-In Cleanliness Monitor: Optional
Construction: Welded Steel Tube Frame with Steel Panels
Finish: Baked Powder-Coat Hammer-Tone Finish
Plumbing Materials: Stainless Steel
Fluid Delivery Technology: 20 Asymmetrically Placed 15° Stainless Steel Nozzles
Number of Process Chambers: 1 Standard (2-4 Optional)
